Semi Automatic PET Stretch
Blowing Machine Auto Drop Model

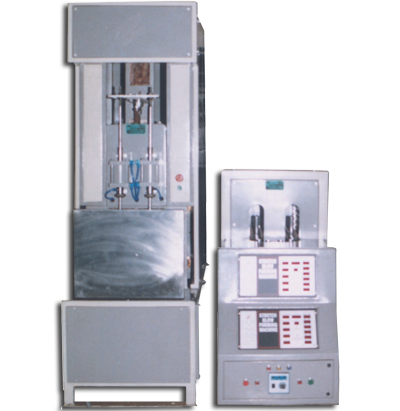

Semi Automatic PET Stretch Blowing MachineAuto Drop Model

Semi Automatic PET Stretch Blowing Machine

Machine Features

  • The machine is equipped with built-in micro processor.
  • The machine is also equipped with reputed pneumatic cylinders and valves.
  • The stretching unit applies sliding guide, with the stretching lenght adjustable according to the height of bottle die.
  • A pressure reduction adjusting valve controls the speed of stretching and of the die opening and closing.
  • Excessive compresses air is exhauseted through silencer.
  • Two method a manual and automatic operation are convenient for mainteanace, testing and production.
  • Using high quality improved parts to lengthen machin's service life.

Semi Automatic PET Stretch Blowing MachineAuto Drop Model

Item Model Auto to Drop
Max. Product Capacity ml 2000
Min. Product Capacity ml 250
Max. Neck Diameter mm 28
Max. Product Diameter mm 90
Max. Product Height mm 340
Production Capacity Piece/Hr 900 to 1100
Max. Blow Height mm 350
Cavity Nos. 2
Working Pressure Bar(kg.) 8 max
Blowing Pressure Bar(kg.) 20 to 30
Heater Power Connected KW 12
Clamping Strock mm 140/150
Mold Platen Size mm 440x340x35
Tie Bar Distance mm 330
Max. Mold Thickness mm 160
Min. Mold Thickness mm 100
Clamping Force Ton 8
Cavity Center Distance mm 150

Uses

AMPEEPET a manual two-stage re-heat hi-directional stretch blow moulding machine is the latest developed product from our factory. It is product Pet hi-oriented containers in two stages; having the advantages of being compact in size with low power consumption, low investment cost of sample structure and convenient to maintain. The machine can blow various geometric plastic containers that can be used in packing for goods.

Mineral and Distilled Water, Carbonated Drink, Food and Candy, Sauce and Juice, Edible Oil, Detergent, Pharmacy, Cosmetric, Liquor.
